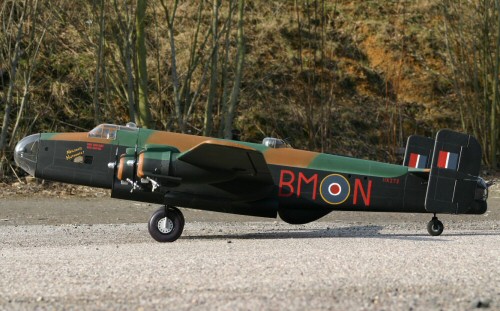

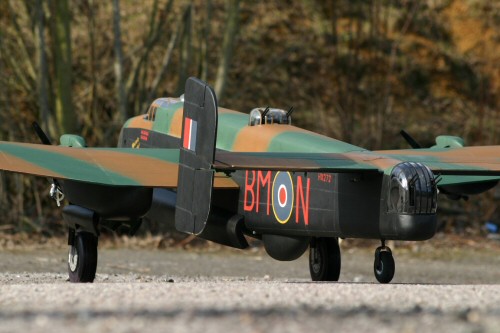

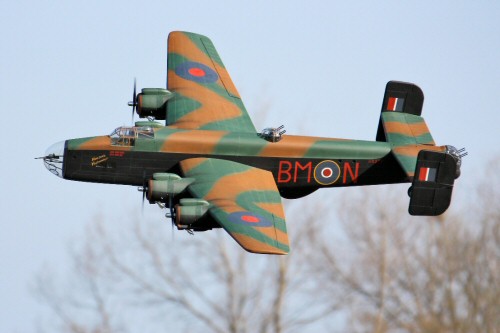

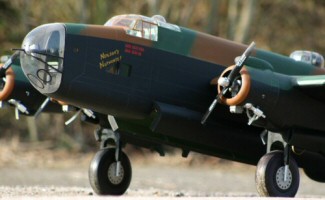

Handley Page Halifax - RCM&E Plan July 2010 by Tony Nijhuis




Specification

Wingspan
2640mm / 104"
Length
1970mm / 77.5"
IC Engines
.32 - .40 Four Strokes
Electric Motor
4-Max Recommended
Radio
5 Function
AUW
10,432g / 23lbs
Scale
1/12

Please click here for the recommended electric setup

Please click her for the build article

A long time in the designing and one our Canadian friends have been waiting a long time for, the Halifax compliments the Lancaster and indeed all of Tony’s designs.
As with the Lancaster, the Halifax is a real builders model. Fully built up construction using balsa and plywood, the fuselage is a simple ‘slab sided’ structure with a sheet balsa top and a cross-sheeted underside. The wings are a built-up structure of ribs over a main spar and balsa sheeted. The tailplane built up in a similar fashion to the wings.
Design for four 32-40 IC engines or the brushless equivalent.
The plans are full size on two very large sheets and the VAC form set includes the cockpit canopy, the top and rear turrets, the nose dome, the underside raydome and four engine cowls….a very complete set!

The CNC pack includes, ply fuselage formers, wing ribs and tail ribs and the nacelle structures.
Additional balsa wood sheet and strip stock is required to finish the model and is listed and priced below. The model is design for retractable undercarriage.

Please Note
Although we carry selective stock, we generally print and manufacture to order so deliveries may take up to 28 days to reach you from point of order. Also delivery of plans, some plastic parts and CNC wood packs will be sent as separate consignments.

For overseas orders please Email us

Description Price Quantity
Plan for 104" Halifax £50.00
VAC set (Canopy, turrets, nose cone and 4 cowls) £63.00
Plan + VAC Set Save £3.00 £110.00
CNC Pack (fuselage formers, wing ribs and tailplane ribs) £170.00
Plan + VAC Set + CNC Pack Save £10.00 £273.00
Wood Pack to complete model (stock sheet and strip) £127.00
Plan + VAC Set + CNC Pack + Wood Pack Save £15.00 £395.00
1/10th Scale British WWII Pilot. H70mm x W70mm £4.99
