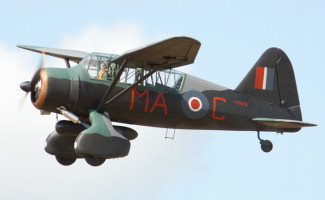

66” Westland Lysander - RCM&E Special Plan 2009
by Tony Nijhuis




Specification

Wingspan
1676mm / 66"
Length
1257mm / 49.5"
IC Engine
0.48/0.52 IC 4 Stroke
Electric Motor
4-Max Recommended
Radio
5 Function
AUW
2720g / 6lbs
Scale
1/9th

Please click here for the recommended electric setup

 Click here to download the build article in PDF format

Please click here for Tony's construction photos

Please click here for some construction photos

Please click here for the RCM&E Video on YouTube

Please click here for the CompyMad's Video on YouTube

Similar in construction to the 2008 special Hurricane, this is again a real builder’s model.
Built up construction using balsa and plywood, the fuselage is built using a central box frame and former and stringer build up around this.
The wings are a built-up structure of ribs over a main spar and part balsa sheeted.
The tailplane is built up in a similar fashion to the wings except fully sheeted.
Specifically design for .48 to .52 IC 4-stroke motor, the model can easily be adapted for brushless outrunner type motors and LiPo batteries.

Plan, VAC formed canopy, spats and a cowl are available, as is a CNC pack and wood pack. The CNC pack includes all fuselage formers, spines and doublers, wing ribs and tailplane ribs.

Please Note
Although we carry selective stock, we generally print and manufacture to order so deliveries may take up to 28 days to reach you from point of order. Also delivery of plans, some plastic parts and CNC wood packs will be sent as separate consignments.

For overseas orders please Email us

Description Price Quantity
Plan for 66" Westland Lysander £25.00
VAC Form Set (Canopy, Cowl and Spats) £70.00
Vac formed dummy engine for the Lysander £14.00
Plan + VAC Form Set Save £3.00 £92.00
CNC Pack (includes all fuselage formers, spines and doublers, wing ribs and tailplane ribs) £86.00
Plan + VAC Form Set + CNC Pack Save £6.00 £175.00
Wood Pack to complete model (stock sheet and strip) £69.00
Plan + VAC Form Set + CNC Pack + Wood Pack Save £10.00 £240.00
1/9th Scale British WWII Pilot. H80mm x W75mm £10.99
