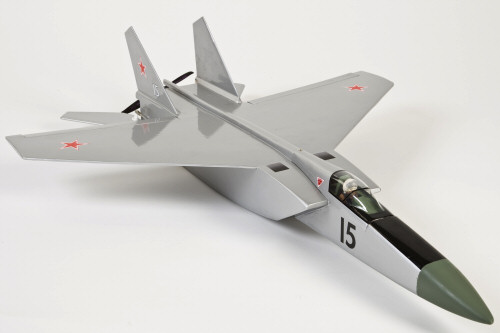

Electric Jet Dogfight Double - 24” MiG 25 'Foxbat'
RCM&E Plan May & June 2008 by Tony Nijhuis




Specification

Wingspan
610mm / 24"
Length
825mm / 32.5"
IC Engine
Not applicable
Electric Motor
4-Max Recommended
Radio
3 Function (micro)
AUW
450-710g / 16-25oz

 Click here to download the RCM&E build article in PDF format

Please click here for the recommended electric setup

Designed as a fun scale model. The construction technique has been simplified to a slab-sided model with the emphasis placed on the builder to carve and shape to achieve the flowing shape of this jet.
It features a solid balsa (6mm) sheet wing and box fuselage construction.
This is a one piece model with no detachable parts, except for access hatches.
Designed around a brushless inrunner motor and a Lithium Polymer battery.

This model is very fast and is designed for hand launch.
Plan and VAC formed canopy available only.
No CNC or wood packs are available for this models.

 For the decals Please click here

Please Note
Although we carry selective stock, we generally print and manufacture to order so deliveries may take up to 28 days to reach you from point of order. Also delivery of plans, some plastic parts and CNC wood packs will be sent as separate consignments.

For overseas orders please Email us

Description Price Quantity
Plan for Dogfight Double 24" MiG 25 'Foxbat' £15.00
Vac form set (canopy) £14.00
Plan + Vac form set Save £1.00 £28.00



Here is a RCM&E video of Tony flying the MiG 25 Foxbat and the English Electric Lightning both powered by 4-Max Purple Powered Brushless inrunner motors. Please bear in mind that Tony is flying very slowly at approx 1/3 throttle for the stills photographer.
These models are a lot faster when flown with more throttle.
