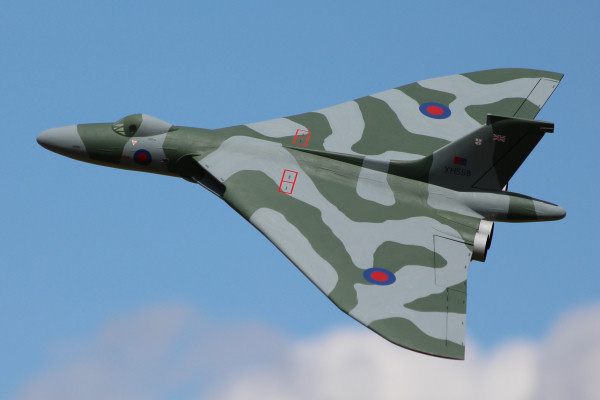

49" Avro Vulcan Plan by Tony Nijhuis
RCM&E Special October 2014




Specification

Wingspan
1238mm / 49"
Wing Area
5.6 sq' (0.5m²)
Power
2x Brushless Inrunner or
4x 50mm Ducted Fans
both on 4S LiPo
Radio
4-5 Function
AUW
2kg/4.5lb



Please click here for the Build Article

Please click here for the Twin Pusher build photo's

Please click here for the EDF build photo's

This is a model that so many of our customers wanted us to design..the Avro Vulcan.

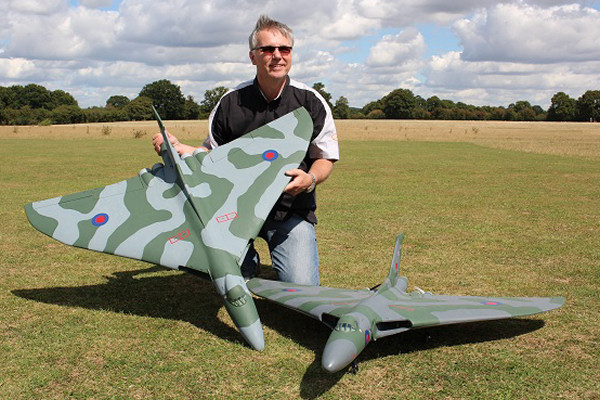

Knowing that it's going to be a popular choice, we have spent a little more time perfecting the different version available to you the builder. So you have a choice of either a twin pusher version or a ducted fan version using four 50mm diameter fan units.

Construction, as with all of our models is traditional, so no foam anywhere, just good old fashioned balsa and plywood.

The plan shows both versions in detail so if you can't decide, why not order the plans, take a look and then decide.

The plans are full size and reproduced on two large sheets of quality paper and not the 'free plan' quality, supplied with the 2014 RCM&E Special magazine.

A VAC set is available which include the Canopy, dummy engine blisters and engine fairings, but you will have to specify which version you wish to build as there is a slight difference between the pusher and DF versions of the VAC set.

As with all our models a CNC pack and wood pack to complete the model is available. (Please note that the wood pack assumes you are using the CNC pack in conjunction).

The CNC pack includes all fuselage formers, the wing ribs and fin ribs plus additional parts for either version.

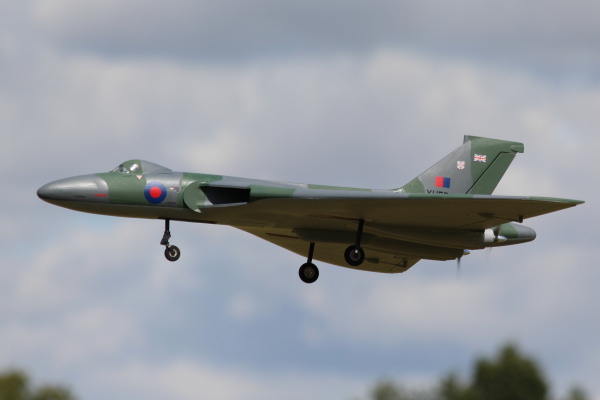

We have also sourced retract units for this model which have been adjusted and tested to suit the design. These are available to buy from our website.

THE RETRACTS FOR THIS MODEL ARE ONLY SUITABLE TARMAC OR VERY SHORT AND FIRM SUMMER GRASS RUNWAYS.
IF YOUR SITE CONDITIONS ARE NOT SUITABLE THEN THE MODEL SHOULD BE HAND LAUNCHED AND RETRACTS DISPENSED WITH.

Finally, to assist the building of this model, we have made available free downloads of the build article and a set of build photos for both DF and pusher versions.

Please Note
Although we carry selective stock, we generally print and manufacture to order so deliveries may take up to 28 days to reach you from point of order. Also delivery of plans, some plastic parts and CNC wood packs will be sent as separate consignments.

For overseas orders please Email us

Description Price Quantity
Plan for 49" Avro Vulcan includes both twin pusher & EDF versions £25.00
Vac form set Twin Pusher Version £28.00
Vac form set EDF Version £28.00
Plan + Vac form set Twin Pusher Version Save £3.00 £50.00
Plan + Vac form set EDF Version Save £3.00 £50.00
CNC Pack. Fuselage formers, and wing ribs covers both versions £83.00
Plan + Vac form Set + CNC Pack Twin Pusher Version Save £6.00 £130.00
Plan + Vac form Set + CNC Pack EDF Version Save £6.00 £130.00
Wood Pack to complete model (stock sheet and strip) Both version covered. £91.00
Plan + Vac form Set + CNC Pack + Wood Pack Twin Pusher version Save £10.00 £217.00
Plan + Vac form Set + CNC Pack + Wood Pack EDF version Save £10.00 £217.00
Vulcan Electric Retract Set £110.00 Out of Stock
