33" Folland Gnat Free Plan Dec 2021 RCM&E
by Tony Nijhuis

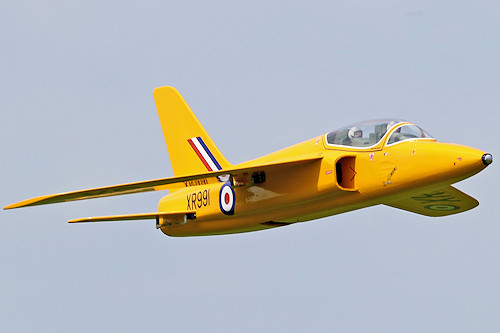

Tony Nijhuis 28" EDF Folland Gnat

Tony Nijhuis 28" EDF Folland Gnat

Designed as a 32% enlargement of our very popular ‘mini’ EDF design.
The construction technique follows the same design philosophy, and uses less than 20 component parts to build the model.
Designed using a solid balsa (8mm) sheet wing, this model is a one piece design with no detachable parts, except for the battery access hatch.

With a wing loading of only 22oz/sq’ and easy grip of the fuselage, this model is very easy to hand launch by the pilot themselves. The plans are full size and reproduced on a large sheet of quality paper.

As with all our models a canopy, CNC pack and wood pack to complete the model, is available. (Please note that the CNC and wood pack are combined so this contains all the wood you will need to construct the model).

The CNC parts include all fuselage formers, fuselage side parts, the tail and fin pieces, the wing parts plus additional pieces. Finally, to assist the building of this model, we have made available free down loads of the build article and a set of build photos.



Specification

Wingspan
838mm / 33"
Length
990mm / 39"
Radio
3 Function
AUW
1150g / 46oz
Wing Loading
22oz/sq’ (6.4kg/m2)
Fan Size
70mm 12 Blade EDF
LiPo
4S Min 40C (4,500mAh)



 Click here to download the build photos in PDF format

Please click here for the recommended electric setup

Please Note
Although we carry selective stock, we generally print and manufacture to order so deliveries may take up to 28 days to reach you from point of order. Also delivery of plans, some plastic parts and CNC wood packs will be sent as separate consignments.

For overseas orders please Email us

Description Price Quantity
Plan for 33" Folland Gnat £20.00
Vac form set (canopy) £20.00
Plan + Vac form set Save £3.00 £37.00
CNC Pack and Wood Pack £TBA
Plan + CNC Pack + Vac form set Save £5.00 £TBA
Pilot for 33" Folland Gnat £TBA
Decals for 33" Folland Gnat £TBA
