36" Hawker Hunter RCM&E Free Plan February 2022
by Tony Nijhuis

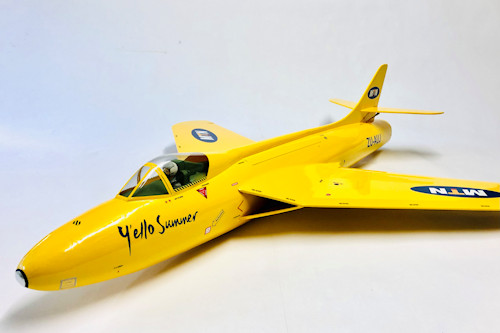

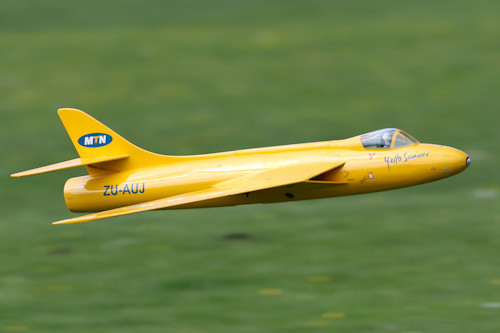

Tony Nijhuis 36" EDF Hawker Hunter

Tony Nijhuis 36" EDF Hawker Hunter

Tony Nijhuis 36" EDF Hawker Hunter

Designed as a 40% enlargement of our very popular 'mini' EDF design.
The construction technique follows the same design philosophy, and uses less than 20 component parts to build the model.
Designed using a solid balsa (8mm) sheet wing, this model is a one piece design with no detachable parts, except for the battery access hatch.

With a wing loading of only 22oz/sq' and easy grip of the fuselage, this model is very easy to hand launch by the pilot themselves. The plans are full size and reproduced on a large sheet of quality paper.

As with all our models a canopy, CNC pack and wood pack to complete the model, is available. (Please note that the CNC and wood pack are combined so this contains all the wood you will need to construct the model).

The CNC parts include all fuselage formers, fuselage side parts, the tail and fin pieces, the wing parts plus additional pieces. Finally, to assist the building of this model, we have made available free down loads of the build article and a set of build photos.



Specification

Wingspan
908mm / 36"
Length
1016mm / 40 "
Radio
3 Function
AUW
623g / 22oz
Wing Loading
22oz/sq’ (6.5kg/m2)
Fan Size
70mm 12 Blade EDF
LiPo
4S Min 40C (4,500mAh)



 Click here to download the RCM&E build article in PDF format

 Click here to download the build photos in PDF format

Please click here for the recommended electric setup

Please Note
Although we carry selective stock, we generally print and manufacture to order so deliveries may take up to 28 days to reach you from point of order. Also delivery of plans, some plastic parts and CNC wood packs will be sent as separate consignments.

For overseas orders please Email us

Description Price Quantity
Plan for 36" Hawker Hunter £20.00
Vac form set (canopy) £18.00
Plan + Vac form set Save £3.00 £35.00
CNC Pack and Wood Pack £106.00
Plan + CNC Pack + Wood Pack + Vac form set Save £5.00 £139.00
Pilot for 36" Hawker Hunter £12.00
Decals for 36" Hawker Hunter £28.00
