23" F4 Phantom RCM&E Free Plan 2020
by Tony Nijhuis

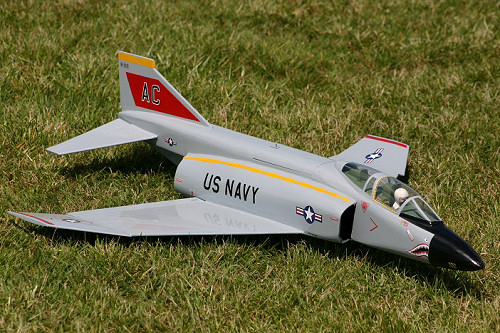

Tony Nijhuis 23" EDF F4 Phantom

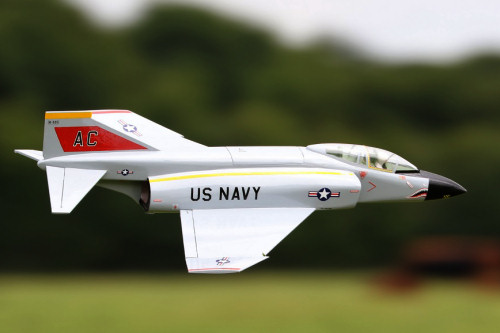

Tony Nijhuis 23" EDF F4 Phantom

Designed as near scale model, the construction technique follows the same design philosophy as our previous 'mini EDF designs' using less than 20 component parts to build the model.

Designed using a solid balsa (6.5mm) sheet wing, this model is a one piece design with no detachable parts, except for the battery and radio access hatches.

With a wing loading of only 21oz/sq' this model is very easy to hand launch by the pilot themselves.

The plans are full size and reproduced on a large sheet of quality paper. As with all our models a canopy, CNC pack and wood pack to complete the model, is available. (Please note that the CNC and wood pack are combined so this contains all the wood you will need to construct the model).

The CNC pack includes all fuselage formers, fuselage side parts, the tail and fin pieces, the wing parts plus additional pieces.

Finally, to assist the building of this model, we have made available free down loads of the build article and a set of build photos.



Specification

Wingspan
584mm / 23"
Length
695mm / 27.5"
Radio
3 Function
AUW
623g / 22oz
Wing Loading
22oz/sq’ (6.3kg/m2)
Fan Size
50mm (Min 600g Thrust)
LiPo
3S Standard (2200mAh)
4S Upgrade
(1800mAh)



 Click here to download the RCM&E build article in PDF format

 Click here to download the build photos in PDF format

Please click here for the recommended electric setup

Please Note
Although we carry selective stock, we generally print and manufacture to order so deliveries may take up to 28 days to reach you from point of order. Also delivery of plans, some plastic parts and CNC wood packs will be sent as separate consignments.

For overseas orders please Email us

Description Price Quantity
Plan for 23" F4 Phantom £15.00
Vac form set (canopy) £14.00
Plan + Vac form set Save £3.00 £26.00
CNC Pack and Wood Pack £65.00
Plan + CNC Pack + Vac form set Save £5.00 £89.00
Pilot for 23 " F4 Phantom £14.00
