28" Jet Provost RCM&E Free Plan August 2019
by Tony Nijhuis

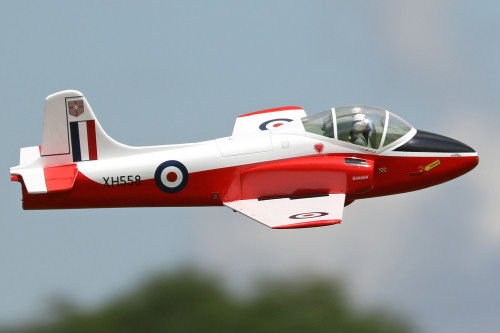

Tony Nijhuis 28" EDF Jet Provost

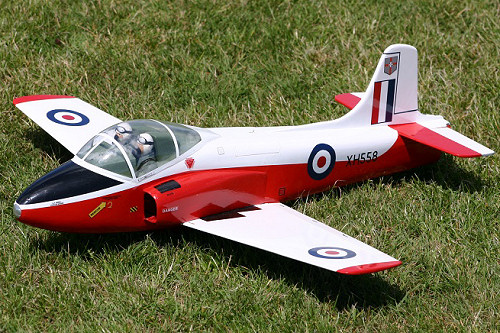

Tony Nijhuis 28" EDF Jet Provost

Tony Nijhuis 28" EDF Jet Provost

Designed as near scale model, the construction technique follows the same design philosophy as our previous ‘mini EDF designs’ using less than 20 component parts to build the model.

Designed using a solid balsa (6.5mm) sheet wing, this model is a one piece design with no detachable parts, except for the battery and radio access hatches.

With a wing loading of only 21oz/sq’ and easy grip of the fuselage (via the fuselage drop tank), this model is very easy to hand launch by the pilot themselves.

The plans are full size and reproduced on a large sheet of quality paper.

As with all our models a canopy, CNC pack and wood pack to complete the model, is available. (Please note that the CNC and wood pack are combined so this contains all the wood you will need to construct the model).

The CNC pack includes all fuselage formers, fuselage side parts, the tail and fin pieces, the wing parts plus additional pieces.

Finally, to assist the building of this model, we have made available free down loads of the build article and a set of build photos.



Specification

Wingspan
711mm / 28"
Length
673mm / 26.5 "
Radio
3 Function
AUW
620g / 24oz
Wing Loading
21oz/sq’ (6.3kg/m2)
Fan Size
50mm (Min 600g Thrust)
LiPo
3S Standard (2200mAh)
4S Upgrade
(1800mAh)



 Click here to download the RCM&E build article in PDF format

 Click here to download the build photos in PDF format

Please click here for the recommended electric setup

Please Note
Although we carry selective stock, we generally print and manufacture to order so deliveries may take up to 28 days to reach you from point of order. Also delivery of plans, some plastic parts and CNC wood packs will be sent as separate consignments.

For overseas orders please Email us

Description Price Quantity
Plan for 28" Jet Provost £14.00
Vac form set (canopy) £19.00
Plan + Vac form set Save £3.00 £30.00
CNC Pack and Wook Pack £41.00
Plan + CNC Pack + Vac form set Save £5.00 £69.00
